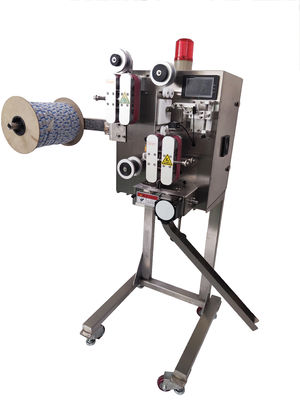

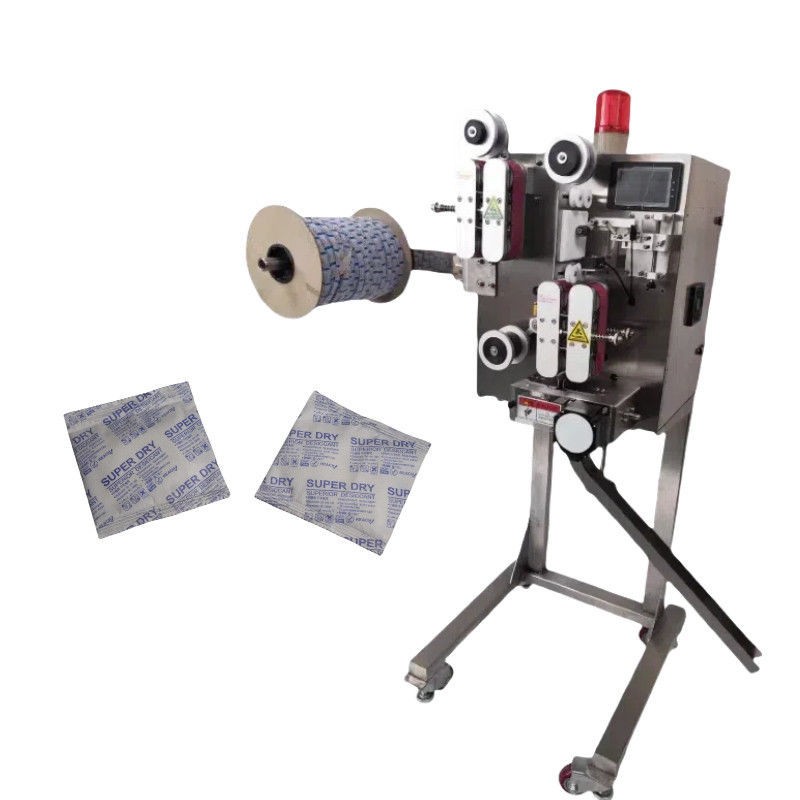

Changsheng Desiccant Inserter Machine The Ultimate Solution For Your Packaging Needs

Ik ben online Chatten Nu

Changsheng Desiccant Inserter Machine The Ultimate Solution For Your Packaging Needs

Changsheng Desiccant Inserter Machine The Ultimate Solution For Your Packaging Needs
Changsheng Desiccant Inserter Machine The Ultimate Solution For Your Packaging Needs
Changsheng Desiccant Inserter Machine The Ultimate Solution For Your Packaging Needs Changsheng Desiccant Inserter Machine The Ultimate Solution For Your Packaging Needs Changsheng Desiccant Inserter Machine The Ultimate Solution For Your Packaging Needs

Grote Afbeelding :  Changsheng Desiccant Inserter Machine The Ultimate Solution For Your Packaging Needs

Productdetails:
Place of Origin: Guangdong,China
Merknaam: CS
Certificering: CE
Model Number: CS-120
Betalen & Verzenden Algemene voorwaarden:
Min. bestelaantal: 2
Prijs: Price negotiable
Packaging Details: Export wooden box
Delivery Time: Delivery date negotiable
Betalingscondities: T/T
Supply Ability: 100 units per month

Changsheng Desiccant Inserter Machine The Ultimate Solution For Your Packaging Needs

beschrijving
Capaciteit: 220 zakken/min (wanneer de zaklengte ongeveer 75 mm is) POUCH SIZ: lengte 30~100 mm breedte 30~100 mm
POWER SUPPLY: 200~220VAC single-phase 50HZ/60HZ about 500VA OUTLINE DIMENSIONS: about 650(L)x680(W)x1800(H)mm
Weight: 500kg Bottle Height: 50-200mm
Bottle Diameter: 20-100mm Desiccant Feeding System: Vibrating Plate
Luchtdruk: 0.6-0.8Mpa Power Consumption: 1.5kW
Versnelling: 200 flessen per minuut Desiccant Size: 1-5g
Luchtverbruik: 0.3m3/min Power Supply: 220V/50Hz
Control System: PLC and Touch Screen Materiaal: roestvrij staal
Markeren:

220v bag feeder machine

,

50hz bag feeder machine

,

220v desiccant inserter machine

Are you still worried about your product packaging?
Low capacity - high scrap rate - no guarantee after sale - high cost
Choose Changsheng packaging machinery, all the above troubles are not in words
Changsheng packaging machinery
8 years of craftsmanship
Accurate and rapid packaging saves time and manpower for enterprises to save 70% labor costs
High precision - high capacity - fast efficiency - save time - save capacity - good quality



Desiccant bagging machine is an automated equipment for desiccant packaging. Desiccant is a hygroscopic agent, commonly used in the fields of moisture absorption, moisture prevention and preservation. In order to facilitate use and sales, desiccant usually needs to be packaged, and the desiccant bagging machine is a mechanical equipment used to complete this packaging process.

The main function of the desiccant bagging machine is to automatically put the desiccant into the packaging bag, and perform operations such as sealing and labeling. The equipment is usually composed of a conveying system, a metering system, a packaging system and a control system. Among them, the conveying system is used to transport the desiccant from the storage warehouse or container to the metering system; the metering system is responsible for accurately measuring the weight or volume of the desiccant; the packaging system completes the opening, delivery, sealing and labeling of the packaging bag; the control system monitors and controls the entire packaging process to ensure its normal operation.





Feature
1. Automatically complete the process of bagging, cutting, and bagging to improve efficiency.
2. Avoid human contact to improve hygiene.
3. Using servo motor and PLC control system, advanced digital operation, simple and convenient, can change bags of different sizes.
4. Strong compatibility, suitable for bottles and bags of various specifications and materials, suitable for color-coded or colorless desiccant bags. 5. Integrated high-intelligent sensing technology, can be used with or without color-coded bags.

Bag length
20-150mm
Bag width
20-160mm
Power supply
220V 50HZ
Total power
3.2KW
Net weight
55kg
Machine Dimension
600(L)*750(W)*1500(K)mm
