Pharmaceutical Multi Lane Stick Pack Machine 2-10 Lanes Chemical Multi Column

Grote Afbeelding : Pharmaceutical Multi Lane Stick Pack Machine 2-10 Lanes Chemical Multi Column

Productdetails:

Place of Origin:	Guangdong,China
Merknaam:	CS
Certificering:	CE
Modelnummer:	Cs

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	1
Prijs:	Price negotiable
Verpakking Details:	De uitvoer Houten doos Verpakking
Delivery Time:	Delivery date negotiable
Betalingscondities:	T/T
Supply Ability:	100 units per month

Contact

Pharmaceutical Multi Lane Stick Pack Machine 2-10 Lanes Chemical Multi Column

beschrijving

Functie:	Het VULLEN, het Verpakken, het Verzegelen	Verpakkingstype:	Zakken, Zak
packaging material:	Plastic	Voltage:	380V
function FILLING, Wrapping, Sealing packaging type Bags, Pouch packaging material Plastic Voltage 38:	PASTE, liquid	Weight (KG):	1500
application:	Food, Beverage	automatic grade:	Automatic
Garantie:	1 jaar	after-sales service provided:	Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service, Free spare parts
Machinaal materiaal:	roestvrij staal	Power Consumption:	5-8KW
Op maat gemaakte ondersteuning:	OEM, ODM	Air Pressure:	0.6MPa
Packing Material:	Plastic film, paper, aluminum foil, etc.	Toepassing:	Voedsel, farmaceutisch, chemisch, hardware, enz.
Packing Type:	Pillow bag, gusset bag, stand-up bag, etc.	Bag Size:	Length: 50-300mm, Width: 50-200mm
Weight:	1000-2000kg	Packing Speed:	Up to 200 packs per minute
Number Of Lanes:	2-10 lanes	Air Consumption:	0.4m3/min
Dimension:	300012001800mm	Power Supply:	220V/380V, 50/60Hz, 3 phase
Markeren:	Pharmaceutical multi lane stick pack machine , 10 Lanes multi lane stick pack machine , Multi Column multi lane sachet packaging machine

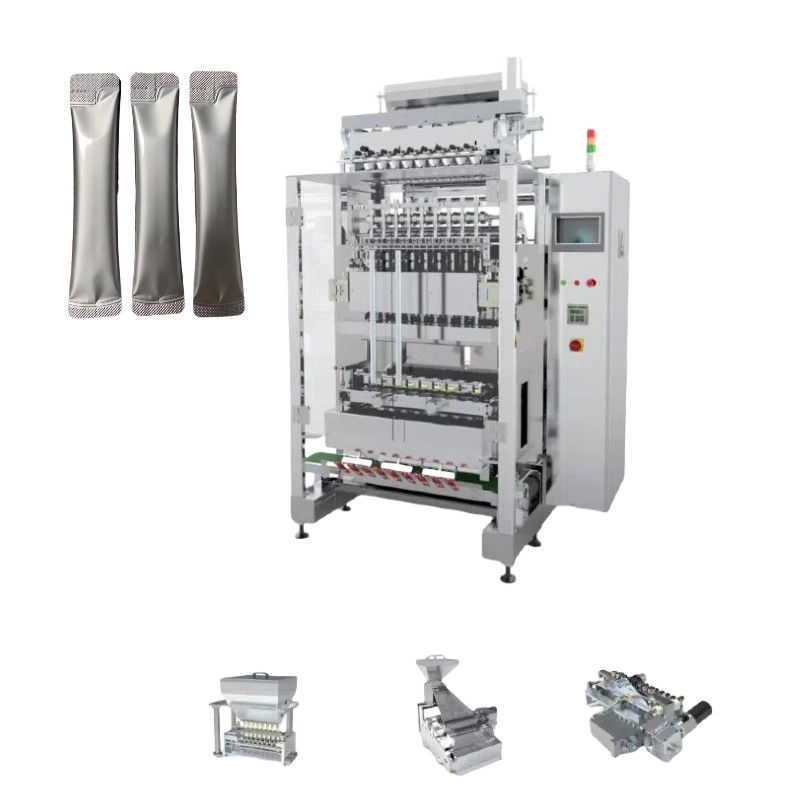

Multi Column Design Multi Lane Packing Machine For Improved Production Efficiency Of Liquid And Semi-Liquid Products

The multi-column liquid packaging machine is a highly efficient automated equipment, mainly used for multi-column synchronous packaging of liquid or semi-fluid products, and is widely used in food, medicine, chemical, daily chemical and other industries.
Multi-column synchronous filling
It can accurately fill multiple columns of packaging containers at the same time, and ensure the consistency of the filling volume of each column through multiple independent metering systems (such as plunger pumps, peristaltic pumps, etc.), thereby improving production efficiency.
Diversified packaging form support
It is suitable for a variety of packaging types, such as bags (three-side seals, four-side seals), bottles, cans, hoses, etc., and can achieve continuous or intermittent packaging to meet the form requirements of different products.

Main Features

1. lt has SS 304 stainless steel, a strong and long-lasting material.

2. lt usually has an emergency stop, capacity count, and output pack ready.

3. Brand electrical components, more reliable and durable.

4. Automatic slitting film system, the incision is smooth and flat.

Lane number	4/6/8/10/12 Lanes
Measuring range	1-50ml (depend on bag size and packaging material)
Packing speed	30-50 cuts/min
Bag length	Max. 170mm (customized)
Bag width	16-84mm / 16-54mm / 16-40mm / 16-32mm / 16-26mm
Bag type	3/4 side seal bag, back seal bag, irregular shape stick bag
Voltage	380V, 50Hz, 3 Phase
Power	4.5-6.2KW
Air consumption	7L/min
Machine size	Non-standard customization
Machine weight	About 1500kg
