Productdetails:
|
function: | FILLING, Wrapping, Sealing | packaging type: | Bags, Pouch |
---|---|---|---|
packaging material: | Plastic | Voltage: | 380V |
functie VULLEN, WICKELEN, Sluiting Verpakkingsoort zakken, zak verpakkingsmateriaal Plastic Spanning: | PASTE, vloeistof | Weight (KG): | 1500 |
Toepassing: | Eten & Drinken | automatic grade: | Automatic |
Garantie: | 1 jaar | after-sales service provided: | Video technical support, Field installation, commissioning and training, Online support, Field maintenance and repair service, Free spare parts |
Machine Material: | Stainless steel | Energieverbruik: | 5-8 kW |
Customized Support: | OEM,ODM | Air Pressure: | 0.6MPa |
Packing Material: | Plastic film, paper, aluminum foil, etc. | Application: | Food, pharmaceutical, chemical, hardware, etc. |
Packing Type: | Pillow bag, gusset bag, stand-up bag, etc. | Bag Size: | Length: 50-300mm, Width: 50-200mm |
Weight: | 1000-2000kg | Packing Speed: | Up to 200 packs per minute |
Aantal Stegen: | 2-10 rijstroken | Air Consumption: | 0.4m3/min |
Afmeting: | 3000*1200*1800 mm | Power Supply: | 220V/380V, 50/60Hz, 3 phase |
Markeren: | Modular multi lane stick pack machine,SS304 Stainless Steel multi lane stick pack machine,Automatic multi function packaging machine |

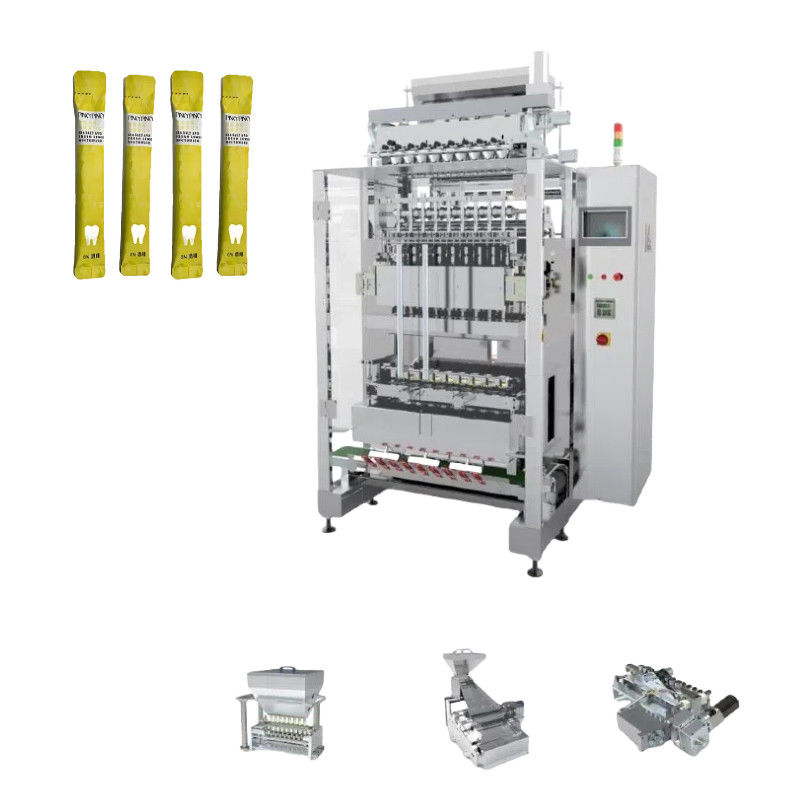

Modular Multi Lane Packing Machine For Customizable Production Line With SS 304 Stainless Steel Material
The multi-column liquid packaging machine is a highly efficient automated equipment, mainly used to quickly and accurately dispense liquid or semi-fluid products into containers.
Environmental protection and energy saving
Servo motors or frequency conversion technology are used to optimize energy consumption. Some models support the function of no bottle, no filling, and reduce material waste.
Hygienic design
Most of the parts in contact with materials are made of 304/316L stainless steel, which meets the standards of the food and pharmaceutical industries, is easy to disassemble and clean, and avoids cross contamination.
Application scenarios: Widely used in liquid packaging in food and beverage (milk, juice), daily chemicals (shampoo, hand sanitizer), medicine (oral liquid), chemical industry (lubricant) and other industries.
Main Features
1. lt has SS 304 stainless steel, a strong and long-lasting material.
Lane number
|
4/6/8/10/12 Lanes
|
Measuring range
|
1-50ml (depend on bag size and packaging material)
|
Packing speed
|
30-50 cuts/min
|
Bag length
|
Max. 170mm (customized)
|
Bag width
|
16-84mm / 16-54mm / 16-40mm / 16-32mm / 16-26mm
|
Bag type
|
3/4 side seal bag, back seal bag, irregular shape stick bag
|
Voltage
|
380V, 50Hz, 3 Phase
|
Power
|
4.5-6.2KW
|
Air consumption
|
7L/min
|
Machine size
|
Non-standard customization
|
Machine weight
|
About 1500kg
|
