Productdetails:
|
Functie: | Het VULLEN, het Verzegelen, het tellen | Verpakkingstype: | Zakken, Film |
---|---|---|---|
verpakkingsmateriaal: | Plastic, papier | Spanning: | 380 |
Gewicht (kg): | 800 | Toepassing: | Eten & Drinken |
Automatische rangschikking: | Automatisch | Garantie: | 1 jaar |
Naverkoopservice: | Videotechnische ondersteuning, Inrichting, inbedrijfstelling en opleiding, Online-ondersteuning, Ond | ||
Markeren: | Vertical 4 side sealing packing machine,Multi Row 4 side sealing packing machine,Beverage 4 side seal pouch machine |

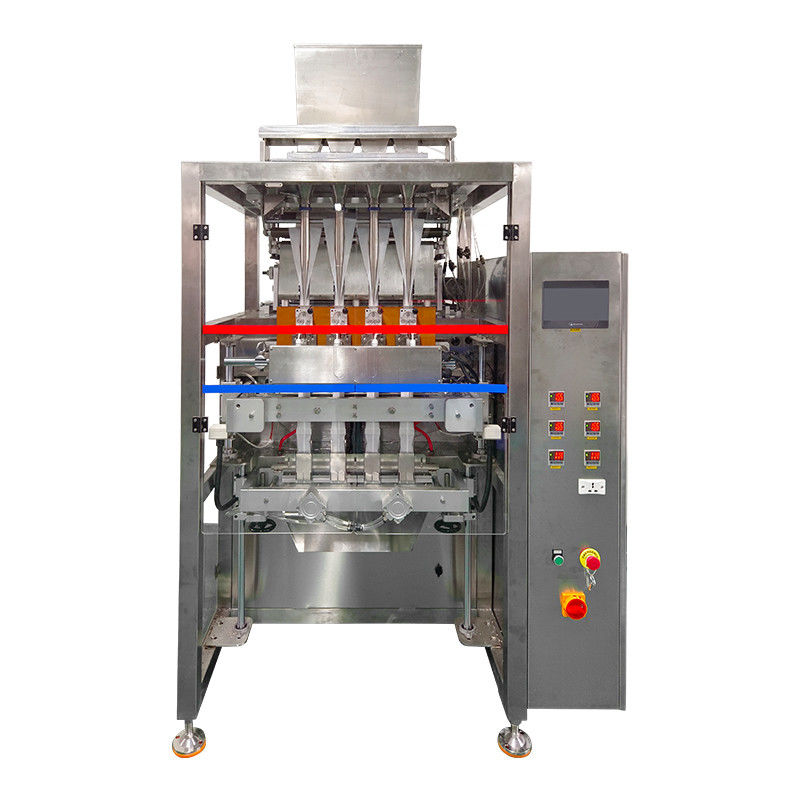

Automatic Multi-Row Four-Side Packing Machine Vertical Filling And Sealing Powder Warm Baby Filling And Packaging Machine
The four-side sealing multi-row packaging machine is a highly efficient automated packaging equipment, suitable for multi-row synchronous packaging of materials such as granules and powders, with the following features and applications:
Core functions and features
Four-side sealing structure
Adopting the four-side heat sealing process, the seal is flat and beautiful, with strong sealing, suitable for products that need to be moisture-proof and dust-proof (such as condiments, medicines, daily chemicals, etc.).
Multi-row high-speed packaging
1-40 rows of packaging can be carried out at the same time, with a speed of up to 30-75 bags/minute (single-row) or 300-600 bags/minute (multi-row), significantly improving production efficiency.
Technical Parameters
Model
|
CS500
|
CS700
|
CS980
|
CS1200
|
Lanes number
|
2-8 lanes
|
3-12 lanes
|
4-16 lanes
|
5-20 lanes
|
Capacity
|
Max.25-40cycle/min/lane
|
|||
Bag size
|
L:45-160mm
W:50-125mm
|
L:45-160mm
W:50-125mm
|
L:45-160mm
W:50-125mm
|
L:45-160mm
W:50-125mm
|
Film thickness
|
Max.500mm
|
Max.700mm
|
Max.980mm
|
Max.1200mm
|
Measuring Method:
|
Piston pump/Peristaltic pump/Ceramic pump/ Rotor pump
|
|||
Sealing type
|
4 sides sealing
|
|||
Cutting type.
|
1. Straight cutting;2. Zig zag cutting ;3 Continuous Cutting
|
|||
Power
|
IN+PE
50HZAC220V
|
|||
supply
|
20V/380V/2.8kw
|
20V/380V/4.1kw
|
20V/380V/5.5kw
|
20V/380V/7.5kw
|
Air consumption:
|
0.8MPA0.8m3/min
|
|||
Dimension:
|
950*1470*1750mm
|
1153*1654*1750mm
|
1415*1686*2130mm
|
0.8 MPA0.8m3/min
|
Weight:
|
400kg
|
550kg
|
650kg
|
900kg
|
